Screen with Corrosion Resistant Stainless Steel Components and Customizable Filtration for Enhanced Downhole Sand Control

Name: Screen with Corrosion Resistant Stainless Steel Components and Customizable Filtration for Enhanced Downhole Sand Control
Brand: OASIS
Price: 1 USD

Quality Screen with Corrosion Resistant Stainless Steel Components and Customizable Filtration for Enhanced Downhole Sand Control wholesale

Brand Name : OASIS

Certification : GB/T 19001-2016/ISO9001:2015

Place of Origin : CHINA

MOQ : 10 Meter/Meters

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 6000 Meter/Meters per Month

Delivery Time : Within 35 days

Packaging Details : Wooden cases or pallet or bundle or container or according to clients' requirements

Diameter : 1-9 5/8

Length : 1-12mters

Slot Size : from 0.01mm

Productname : Premium Screen

Connection : Thread

Sample : Yes

Contact Now

Premium Metal Mesh Sand Control Screen

Product Description

Engineered for extreme downhole working conditions, the Premium Metal Mesh Sand Control Screen stands out for its durable multilayer composite structure and precise graded filtration performance. Different from conventional sand control tubes, this screen adopts an integrated combination of base pipe, inner protective sheath, drainage layer, filter layer and outer protective sleeve, which effectively balances high sand retention rate and stable fluid permeability. It can reliably intercept fine silt and tiny formation particles, solving the common blockage and abrasion problems of traditional screens in complex oil, gas and geothermal wells. With anti-corrosion metal materials and standardized punching process, it realizes long service life and low maintenance cost for downhole operation.

Advantages

Optimized Multilayer Structure: The layered design of base pipe + inner sheath + drainage layer + filter layer enhances pressure resistance and structural stability, avoiding layer separation under high downhole pressure.
Premium Corrosion Resistance: The outer filter and protective components adopt 304, 304L and 316L stainless steel; the base pipe provides multiple steel grade options including J55, K55, N80, P110 and stainless steel SS304, adapting to corrosive formation water and harsh geological environments.
Customizable Filtration & Punching: Equipped with conventional punching apertures (9mm, 11mm, 16mm, 19mm) and diversified filtration precision (150μm-300μm), to meet graded sand control demands of different formation particle sizes.
Universal Thread & Size: Compatible with mainstream oil pipe threads such as EUE, NUE, BTC, STC and LTC; the maximum production length reaches 12 meters for well assembly convenience.

Specification

Item	Detailed Parameters
Outer Diameter	2 7/8” (73mm), 3 1/2" (88.9mm), 4 1/2” (114.3mm), 5" (127mm), 5 1/2" (139.7mm), 6 5/8” (168.3mm)
Base Pipe Material	J55, K55, N80, L80, P110, SS304,SS304L,SS316
Auxiliary Material	304, 304L, 316L Stainless Steel
Punching Aperture	9mm, 11mm, 16mm, 19mm
Filtration Precision	150μm, 200μm, 250μm, 300μm
Thread Type	BTC, STC, LTC
Max Length	0-12 Meters

Application

This sand control screen is widely applicable to deep water wells, oil wells, gas wells, geothermal wells and vertical wells, suitable for petroleum exploitation, geothermal energy development and underground water treatment projects.

FAQ

Q: What makes your mesh sand control screen stand out?
A: Its optimized structure and precise graded sand filtration make it outstanding.

Q: Does the product adopt standardized punching process?
A: Yes, it uses standardized punching process for stable performance.

Q: What is the function of the inner sheath in sand control?
A: It enhances structural stability and assists in efficient sand control.

Q: Can the mesh sand control screen realize graded sand filtration?
A: Sure, it supports customized graded sand filtration as needed.

Related Products

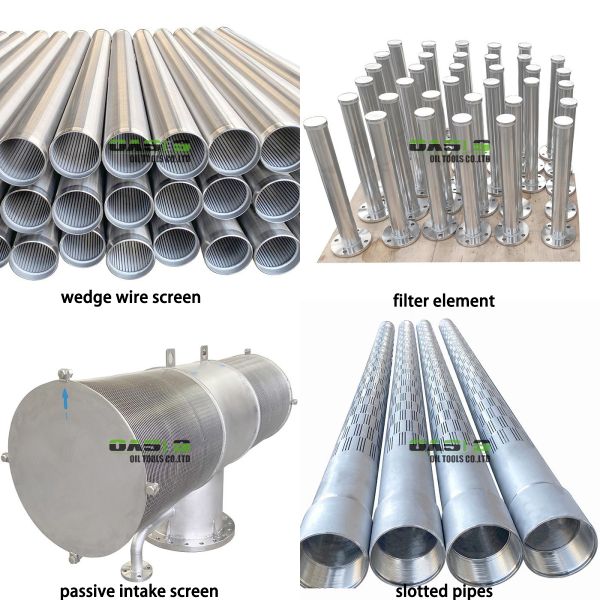

Screen with Corrosion Resistant Stainless Steel Components and Customizable Filtration for Enhanced Downhole Sand Control Images
